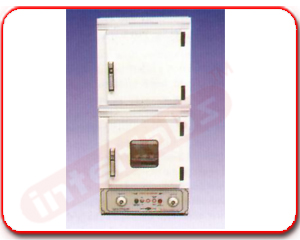

Most versatile and highly reliable low temperature incubator, to make Biochemical Oxygen Demand determinations and for preservation of vaccines, insulin, lever extracts, chemicals etc.
Construction :?
Robust Construction. Outer cabinet is made of M.S. Sheet, duly pre treated & finished with epoxy powder coated paint for lasting finish. Inner chamber is made of high polished stainless steel/aluminium (anodized). It has provision for allowing wide range of shelf positions & spacings. SS/Aluminium trays are also provided. Chamber is duly insulated to minimise heat loss. Two door are provided. Outer door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss. Door is provided with lock and key. Inner door is made of transparent acrylic glass for inspecting the specimens inside chamber, without opening the door and with minimum temperature loss.
Temperature Control :?
The heart of the Interlabs B.O.D. Incubator is the excellent and reliable solid state temperature controller cum indicator digital display, range from 5?C to 50?C ? 0.5?C. Hermetically sealed, high performance compressor works efficiently to lower the inside chamber temperature. Heating elements are placed in the path of moving air duly insulated from the body. Cooling coils also lie in the air circulation path. Air is circulated by a double shaft self-cooled, blower to keep the temp. uniform throughout the inner chamber. A safety thermostat is provided, which switches off the heaters in the event of failure of the normal temp. control system to protect the specimens from excessive heat. Also fitted with a door operated lamp for illumination inside the chamber. Caster wheel provided at bottom for easy mobility.
Control Panel :?
All controls and circuitry are housed at the top of the incubator and therefore protected from spillage. Separate indicator lamps for mains, heating and cooling are fitted. Temperature setting fine and coarse knobs allow the user to set any desired temp. A Voltmeter is provided on the panel to read the incoming voltage.
Salient Feature :?
Interlabs BOD INCUBATOR switches from heating to cooling and vice versa irrespective of the ambient temperature because of its unique design and thus is capable of working without any user intervention. Supplied complete with 3 shelves of anodized Aluminium or Stainless Steel as per the chamber, cord and plug, to work on 220 Volts, 1 Phase, 50 Hz, AC supply.
Optional Accessories (YSI?440) :?
? Interior illumination with 3 Nos. fluorescent tubes.
? Automatic cyclic timer 0?24 hrs. regulating illumination cycle.
? Arrangement for incubation carbon dioxide & air mixture.
? Carbon?di?oxide Cylinder 9 liters.
? Air compressor.
? Voltage Stabilizer 3 KVA.
Available in following chamber sizes :?
W ? H ? D | Cap. Cu. ft. |
455 ? 605 ? 415 mm | 4.0 |
500 ? 800 ? 415 mm | 6.1 |
565 ? 865 ? 550 mm | 10.0 |
650 ? 900 ? 550 mm | 12.0 |
700 ? 900 ? 650 mm | 15.0 |

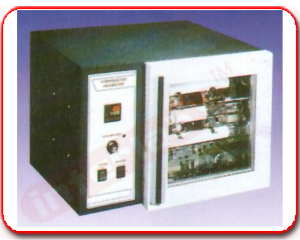

Introduction :?
Elegantly designed, fabricated and tested to suit various applications in ever growing field of Agriculture Colleges/Universities,, small and big potters, Hotels etc. for easy and convenient handling and hatching operation in research work.
Temperature range from ambient to 70?C ? 0.5?C controlled by imported thermostat. Most versatile and highly reliable for egg incubation. Specially designed with moisture control.
Outer body is made of MS sheet, duly pre treated & finished with epoxy powder coated paint. It is highly insulated. The inner chamber is made of aluminium sheet. Door is with double glass viewing windows to facilitate easy inspection of interior.
The chamber trays are provided with manual tilting mechanism.
Water tank is provided at bottom. It has small windows for filling water in it. Water heater is fixed in the tank. Air circulating fan ensure uniform temperature inside the chamber. Incubation in generally done at 37?C or 56?C. Temperature is controlled by imported thermostat. L-shaped thermometer provided on top front of cabinet.
Control Panel :?
The tilting knob is provided on control panel, along with thermostat control knob, pilot light, main ON/OFF switch etc.
Working Principal :?
As soon as the machine is put on the water is heated by water heater and the generated steam comes out through perforation on bottom of inner chamber and is sucked by air circulating fan through perforated egg trays. This air the recalculated and temperature is maintained in the chamber.
Power Supply :?
Equipment is suitable to work on 230 volts, 50 Hz, single phase, AC supply.
Capacity :?
? 50 Eggs
? 100 Eggs
? 200 Eggs
? 250 Eggs

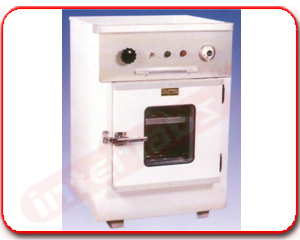

The perfect choice for reliable day to day operation in variety of uses. Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determination etc.
Construction :? Interlabs Incubators are sturdy, double walled construction with complete inner chamber made of Anodized Aluminium or Highly Polished Stainless Steel. Outer chamber is made of Mild Steel Sheet, duly pretreated and finished with durable. The 65mm gap between the walls is filled with special grade insulation material for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 3 removable shelves. Shelves are made of expanded metal in case of Alum. Chamber or of S.S. Sheet.
It has two doors. The outer door is insulated and is fitted with heavy hinges. Inner door is made of glass panel mounted in a wooden frame to facilitate inspection of samples, without disturbing the chamber temperature.
Heating Elements :? Heating elements, made of high grade imported nichrome wire are insulated inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.
Temperature Control :? Temperature is controlled by imported capillary type thermostat from 5?C above ambient to 60?C ?0.5?C. Temperature control knob is graduated in centigrade degrees after actually observing the temperature in steady state.
Ventilation :? Air ventilators port are provided on sides at top for ventilate fumes & to assist convection process.
Control Panel :? The equipment is provided with a panel having a thermostat control knob, ON/OFF switch and indicating light.
Power Requirement :? Supplied with cord and plug. Suitable to operate on 220 V single phase, 50 Hz, AC supply.
Size of inner chamber :?
W ? H ? D | No. of Shelves |
300 ? 300 ? 300 mm | 2 |
355 ? 355 ? 355 mm | 2 |
455 ? 455 ? 455 mm | 2 |
455 ? 605 ? 455 mm | 3 |
605 ? 605 ? 605 mm | 3 |
605 ? 910 ? 455 mm | 3 |
605 ? 910 ? 605 mm | 3 |

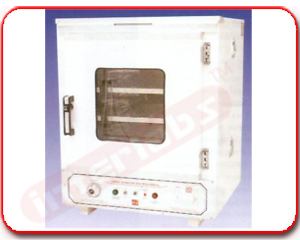

True to their name Interlabs Incubator Bacteriological (Memmert type) got recognised by Bureau of Indian Standards for the FIRST TIME IN INDIA and now carries ISI mark. The perfect choice for reliable day to day operation in variety of uses. Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and Incubation of hydroxy steroids.
Construction :? Interlabs incubators are sturdy, with double walled construction with complete inner chamber made of Anodized Aluminium or Highly Polished Stainless Steel. Outer chamber is made of Mild Steel Sheet, finished with powder coated paint. 75 mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 3 removable shelves. SHELVES are made of fully Anodized Aluminium Sheet or Polished Stainless Steel Sheet as per chamber. Door is insulated & fitted with heavy hinges. Door has Double glass window which facilitate inspection of samples without opening the door. Heating elements, made of high grade imported nichrome wire are put inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.
Temperature Control :? Temperature is controlled by imported capillary type thermostat from ambient to 80?C. Temperature control knob is graduated in centigrade degrees after actually observing the temperature in steady state. An L-shaped prismatic glass Thermometer is fitted on top of the Incubator for reading the chamber temperature.
Ventilation :? Air ventilators are provided on both sides at top to flue away any gas or fumes.
Control Panel :? The equipment is provided with a panel having a thermostat control knob, ON/OFF switch and two pilot lamps.
Power Requirement :? Supplied with cord and plug suitable to operate on 220 V single phase, 50 Hz, AC supply.
Size of inner chamber :?
W ? H ? D | No. of Shelves |
300 ? 300 ? 300 mm | 2 |
355 ? 355 ? 355 mm | 2 |
455 ? 455 ? 455 mm | 2 |
455 ? 605 ? 455 mm | 3 |
605 ? 605 ? 605 mm | 3 |
605 ? 910 ? 455 mm | 3 |
605 ? 910 ? 605 mm | 3 |
* These sizes are provided with air circulating fan as standard feature.
Inner chamber Size :?
W ? H ? D |
355 ? 355 ? 355 mm |
455 ? 455 ? 455 mm |
455 ? 455 ? 605 mm |
605 ? 605 ? 605 mm |
