Products

I.V. Catheter with sylex advantage
I.V. catheter with additional features of improved variant polymer called
TM SYLEX for better visualization of blood

• Suturable wings for better fixation

• Better designed luer cap for better grip and minimum contamination

• Disposable, sterile, non-pyrogenic

• Sealed blister packing

Sizes and technical specifications

SAFETY I.V. Catheter
I.V. Catheter with a patented SAFETY design for protection against needlestick
injuries

• Serrated broad prongs for effective two/three point grip

• Protective colour coded cover for identification and projection for finger rest

• Kink resistant, thromboresistant, siliconized fluoropolymer cannula with double
  tapered, bevelled tip design

• Additional features of lowest coefficient of friction for minimum resistance
  during insertion, maximum flow rate for any gauge and optimum trim distance

• Options available
  - Polyurethane/fluoropolymer
  - Striped radio-opaque/transparent catheter
  - Flashback chamber with/without HYDROPHOBIC FILTER

• Disposable, sterile and non-pyrogenic

• Sealed blister packing


Sizes and technical specifications

SAFETY I.V. Catheter without injection port, without wings
Patented SAFETY design without injection port

• Has all the special features of ADIVEC with the additional advantage of
  minimum contamination to and from the patients with a large infective load

• Disposable, sterile and non-pyrogenic

• Sealed blister packing


Sizes and technical specifications

I.V. Catheter for neonates
Miniature IV catheter with a small, fine and smooth design, especially for use
in neonates (children below 1 month of age)

• Small wings and absence of injection port permits easy handling

• Large internal diameter for increased flow rate and reduced peel back effect

• Siliconized needle tip for atraumatic tissue penetration

• Transparent flashback chamber for easy visualization of blood

• Available in size 26G

• Disposable, sterile and non-pyrogenic

• Sealed blister packing


Sizes and technical specifications

To block IV cannulas when not in use

• Integrated one way valve within the stopper to allow drug administration into
  the cannula without unscrewing it

• Available in latex/latex free varieties


Sizes and technical specifications

I.V. Catheter with transparent cannula
I.V. Catheter with a more transparent body

• A specially designed injection port cap which has a recessed plug and a
  protective skirt to minimize contamination

• Disposable, sterile, non-pyrogenic

• Sealed blister packing

Sizes and technical specifications

• Thread stopper to block IV cannulas when not in use

• Available in white colour

I.V. Catheter without injection port
I.V. Catheter useful in patients carrying highly infective diseases to minimize
transmission of infection

• Projection on main body for two point grip and easy insertion

• Streamlined design provides minimum area of contact with the body

• Maximum needle catheter clearance for minimal peel back effect


Sizes and technical specifications

I.V. Catheter without injection port, without wings
I.V. Catheter with a unique design to minimize transmission of infection in
patients with a large infective load

• Streamlined, sleek design for easy orientation and insertion

• Stainless steel, silicone tipped needle

• Long and broad hub for good grip and control

• Colour coded body

• Full length needle cover for minimizing needlestick injuries

• Disposable, sterile and non-pyrogenic


Sizes and technical specifications

I.V. Catheter with an integrated three-way stopcock
Ports of the stopcock can be utilized for attaching additional stopcocks for
multiple infusion therap

• Colour coded tap for easy identification

• Flexible wings with suture holes for secure fixation

• Luer lock stoppers to prevent contamination

• 360° rotation of the tap without limitation

• Rigid and sturdy design for longevity

• Female luers with 6% taper for compatibility with all standard devices

• Disposable, sterile and non-pyrogenic

• Sealed blister packing


Sizes and technical specifications

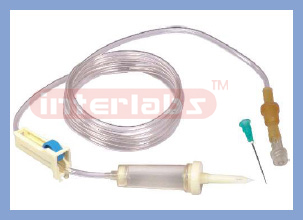

I.V. Infusion Set
Intravenous fluid infusion set to infuse drugs/fluids from IV solution bags to
IV catheters in use

• Sharp, vented spike for easy insertion

• Roller clamp for regulating fluid flow rate

• Kink resistant 150 cm long PVC tubing

• Self sealing latex bulb for drug administration

• Disposable, sterile and non-pyrogenic

Sizes and technical specifications

I.V. Infusion set with airvent

IV infusion set with an airvent integrated above the drip chamber to allow
adequate pressure inside the chamber for smooth, uninterrupted fluid flow

• The airvent is fitted with a bacterial filter
  with snap cap to keep out the air borne
  pathogens

• Flexible drip chamber to facilitate rapid
  adjustment of fluid

• Sharp, sleek spike with vents to allow
  effortless penetration into the IV
  solution bag

• Moulded, self sealing latex bulb at distal
  end for intermittent medication

• Hypodermic needle attached to the
  male luer to prevent contamination

• Soft, kink resistant tubing

• Disposable, sterile and non-pyrogenic

Sizes and technical specifications

Three-way stopcock
Three way stopcock made of polycarbonate

• Multiple channels for multiple infusion therapy

• Designed to withstand pressure upto 3 bars

• Smooth, fully rotatable tap

• Stability tested pneumatically and hydrostatically

• Tap turns every 360° without limitation

• Flow shuts off every 90°

• Minimal dead space in parts to ensure precise drug administration and
  maximum infusion flow

• Continuous flow channels

• Arrow indication marks on top to indicate direction of flow

• Low profile for stable and safe positioning

• Available in lipid resistant/lipid non-resistant varieties

• Available with blue and red pegs for easier identification

• Disposable, sterile and non-pyrogenic

• Sealed blister packing

Sizes and technical specifications

Extension lines with an integrated three-way stopcock

Three-way stopcock with an integrated extension tubing for minimizing manipulation
during intravenous administration of fluids/drugs through an IV cannula

• Minimizes chances of mechanical irritation and infection by taking the
  administration site away from insertion site

• The integrated three-way stopcock offers multiple infusion lines

• Smooth internal surface to minimize turbulence

• Disposable, sterile and non-pyrogenic

Sizes and technical specifications

• Stainless steel, silicone tipped needle for smooth penetration

• Injection port with one way silicone injection valve

• Specially designed protection cap with a recessed plug to cover the injection
  port and minimize contamination

• Angled and grooved wings for secure fixation

• Radio-opaque lines for accurate radiographic detection

• Luer cap for blocking the catheter when not in use

• Available in polyurethane/FEP variants

• 6% luer taper for compatibility with all standard devices

• Disposable, sterile and non-pyrogenic

Sizes and technical specifications

I.V. fluid flow regulator extension set
IV fluid flow regulator extension set to regulate the flow of IV fluid from an infusion set into an IV catheter

• Designed to control flow rates from 5 ml/hr – 250 ml/hr manually

• Built- in Y-connector injection site for extra medication

• Two hand operation eliminates the danger of accidental tampering

• Provision of male and female luer lock makes it compatible with other devices

• Disposable, sterile and non-pyrogenic


Sizes and technical specifications

Extension line with male and female ends
Extension tubing for making administration of IV fluids more convenient

• Made from medical grade PVC

• Minimizes the movement at the cannulation site by taking the fluid
  administration site away from the insertion site

• Smooth internal surface to minimize turbulence

• Disposable, sterile and non-pyrogenic

Sizes and technical specifications

High pressure extension line
High pressure extension lines for arterial blood pressure monitoring

• Manufactured to withstand pressures upto 40 kg/cm

• Fitted with male and female luer locks for secure connection

• Smooth internal surface to minimize turbulence

• Disposable, sterile and non-pyrogenic

Sizes and technical specifications

Measured Volume burette set
IV infusion set with a well marked drip chamber for precise fluid administration

• Flexible graduated burette with markings upto 100/150 ml

• Sharp bevelled smooth spike for easier penetration

• Air inlet with bacterial filter and injection port

• Disc filter inside the drip chamber for adequate filtration

• C-clamp for regulating volume of fluid inflow into the drip chamber

• Soft roller clamp for regulating the rate of fluid infusion to the patient

• Kink resistant tubing with self sealing latex tube for extra medication

• Options of latex bulb/Y-shaped bulb; luer slip/luer lock rotator; vented
  spike/bevelled spike

Sizes and technical specifications

I.V. Catheter for infants and neonates

Miniature IV catheter with a small, fine and smooth design for use in infants
(children below 1 year) and neonates (children below 1 month)

• Small wings and absence of injection port permits easy handling

• Large internal diameter for increased flow rate and reduced peel back effect

• Siliconized needle tip for atraumatic tissue penetration

• Transparent flashback chamber for easy visualization of blood

• Available in size 24G

• Disposable, sterile and non-pyrogenic

• Sealed blister packing

Sizes and technical specifications
